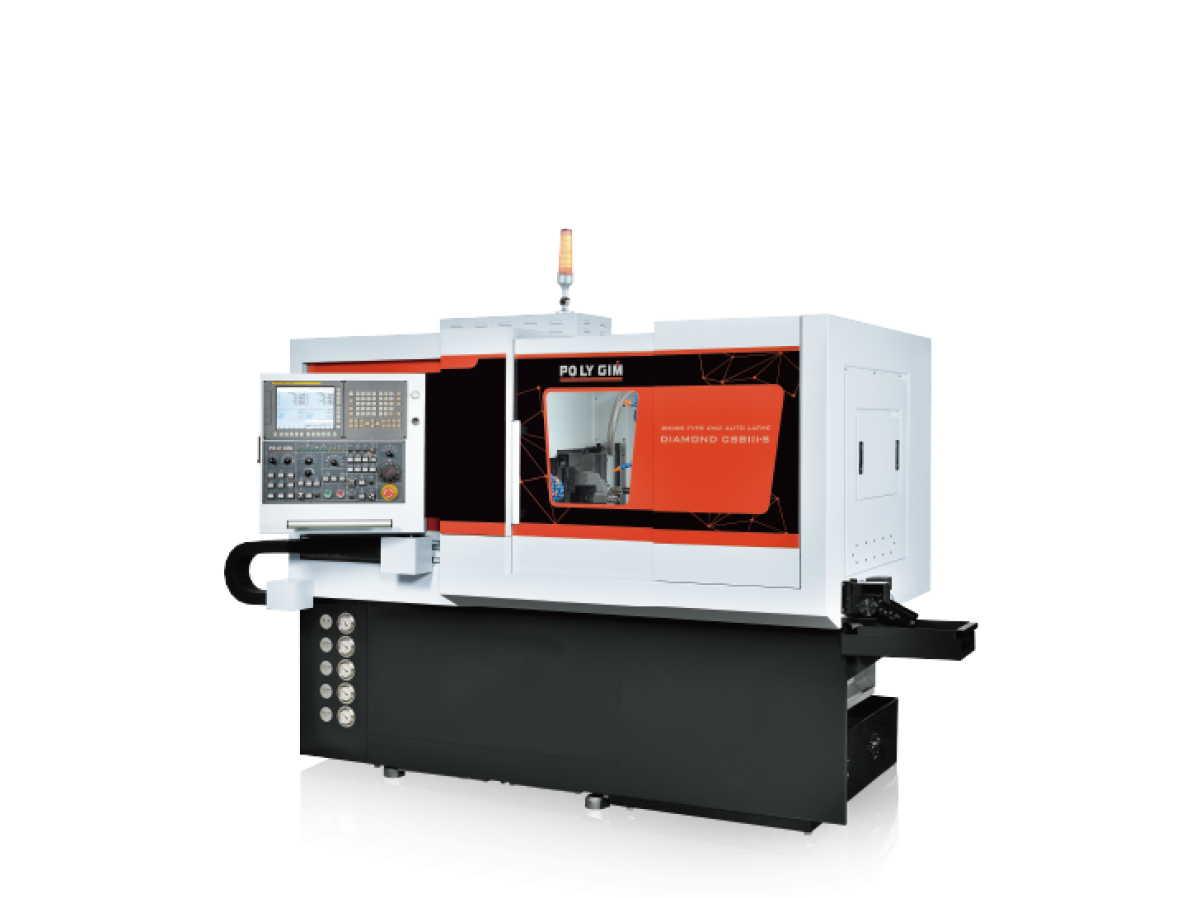

| Model | Specifactions | DIAMOND 16 CSB III-S |
DIAMOND 25 CSB III-S |
| Working Range | Max. Machining Dia | Ø16.5 mm | Ø26 mm |
| Max. Machining Length | 200 mm | 200 mm | |
| Max. Drilling Dia. (Main Spindle) | Ø10 mm | Ø10 mm | |
| Max. Drilling Dia. (Sub Spindle) | Ø7 mm | Ø7 mm | |
| Max. Tapping Dia. (Main Spindle) | M8 | M8 | |
| Max. Tapping Dia. (Sub Spindle) | M6 | M6 | |
| O.D. Tooling | Number of Tools | 6 | 6 |
| Dimension | □12 ×12 × 120 | □12×12 × 120 | |
| I.D. Tooling | Number of Tools | 4 | 4 |
| Dimension | 10 mm (ER16) | 10 mm (ER16) | |
| Cross Working Driven Tooling | Number of Tools | 2+3 | 2+3 |
| Dimension | 10 mm (ER16) | 10 mm (ER16) | |
| Speed | 200~6,000rpm | 200~6,000rpm | |
| Back I.D. Tooling | Number of Tools | 4 + 4 | 4 + 4 |
| Dimension | 10 mm (ER16) | 10 mm (ER16) | |
| Back Working Driven Tooling | Number of Tools | 4 | 4 |
| Dimension | 10mm (ER16) | 10mm (ER16) | |
| Speed | 5,000rpm | 5,000rpm | |
| Spindle | Spindle Hole Dia. | ø17 mm | ø27 mm |
| Spindle Speed | 200~10,000rpm | 200~8,000rpm | |
| Main Spindle Indexing Angle | C-axis | C-axis | |
| Back Spindle | Spindle Hole Dia. | ø17 mm | ø27 mm |
| Spindle Speed | 200~6,000 rpm | 200~6,000 rpm | |
| (Option built-in motor) | 200~10,000rpm | 200~8,000rpm | |
| Max. Length for Front Ejection | 50 mm | 50 mm | |
| Sub Spindle Indexing Angle | C-axis | C-axis | |
| Rapid Traverse | X1, Y1, Z1, X2, Z2 | 30 m / min | 30 m / min |
| Motor | Built-in Spindle Motor | 1.5 / 2.2 kW | 2.2 / 5.5 kW |
| Back Spindle Motor | 1.1 / 3.7 kW | 1.1 / 3.7 kW | |
| (Option built-in motor) | 1.5 / 2.2 kW | 2.2 / 5.5 kW | |
| Y1, Z1, X2, Z2 Axes Motor | 1 kW | 1 kW | |
| X1 Axis Motor | 1.6 kW | 1.6 kW | |
| Y2 Axis Motor (Option) | 1.6 kW | 1.6 kW | |
| Coolant Pump Motor | 1 HP | 1 HP | |
| Lubrication Motor | 4 w | 4 w | |
| Cross Driven Tool Motor | 2.2 kW | 2.2 kW | |
| Back Driven Tool | 1 kW | 1 kW | |
| Motor (Option) | |||
| Y2 Axis with Back Driven | 2.2 kW | 2.2 kW | |
| Tool Motor (Option) | |||
| Center Height | 890 mm | 890 mm | |
| Machine Dimensions | Weight | 2,170 kg | 2,270 kg |
| (Option Y2 Axis) | 2,550 kg | 2,650 kg | |
| Machine Dimensions | 2,440 x 1,430 x 1,650 | ||
| Air | Air Pressure | 5 kg / cm | 5 kg / cm |
| Air Supply | 10 L / min | 10 L / min | |
